Mini Rail Metal Roof Solar Mounting

With the rapid development of distributed photovoltaic systems, metal roofs (trapezoidal metal sheets, corrugated metal roofs) have become the mainstream carrier for commercial, industrial and residential solar projects due to their low cost, fast construction and excellent durability.

The Mini Rail Metal Roof Solar Mounting System is a lightweight and optimized mounting solution specially designed for metal roof PV installations. Replacing traditional full-length rail systems, this mini short rail solution features a minimalist structure, ultra-fast installation and high cost performance, making it an ideal choice for modern metal roof solar projects worldwide.

1. Product Overview & Core Structure

The mini rail solar mounting system is a short-section aluminum rail mounting structure customized for metal roofs. Different from conventional long rails that run through the entire roof, it adopts an independent short rail design for each solar panel. The rails are directly fixed on the wave crests of metal roofs without complicated adapters.

Key Components

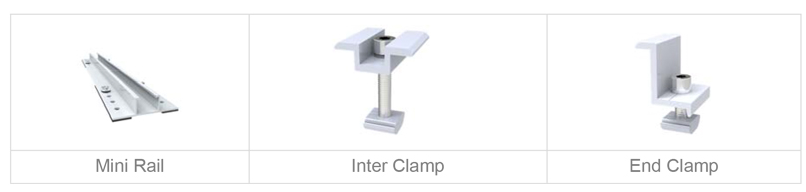

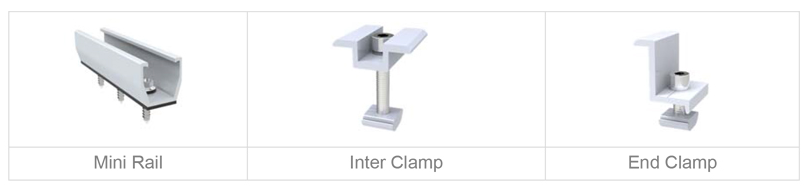

• Mini Aluminum Rails: Made of high-strength 6005-T5 aluminum alloy with anodized anti-corrosion treatment. The rails are lightweight yet load-bearing, with pre-drilled holes to fit common installation spacing standards.

• Stainless Steel Fasteners: Equipped with SUS304 stainless steel self-tapping screws and EPDM waterproof gaskets. The specialized sealing design effectively prevents roof water leakage and ensures long-term waterproof performance.

• Mid & End Clamps: Adopts quick snap-on design without welding or cutting. Compatible with both framed and frameless solar modules, supporting horizontal and vertical panel installation.

2. Core Advantages

1） Ultra-lightweight Design, Lower Roof Load

Compared with traditional full rail systems, the mini rail solution reduces material consumption by more than 60%. The total rail weight for a single solar panel is less than 2kg, which greatly lowers the load pressure on metal roofs. It is perfectly suitable for thin color steel tile roofs with a thickness of 0.8mm to 1.2mm without overloading risks.

2）Fast & Labor-saving Installation

The integrated modular structure requires no on-site cutting or welding. All components are pre-processed for quick assembly. The simplified installation process significantly shortens construction time and reduces labor costs, improving overall project efficiency.

3）Excellent Corrosion Resistance & Long Lifespan

All metal parts adopt premium anti-corrosion treatments. The anodized aluminum rails and SUS304 stainless steel fasteners resist oxidation, rust and extreme weather erosion. The whole system features stable performance and a service life of over 25 years, matching the lifespan of solar modules.

4）Universal Compatibility

This mounting system is widely applicable to most standard trapezoidal and corrugated metal roofs. It is compatible with mainstream sizes of monocrystalline and polycrystalline solar panels, and flexible for both small residential rooftop systems and large commercial & industrial distributed solar projects.

If you are interested in the mini rail systems,feel free to contact us.
