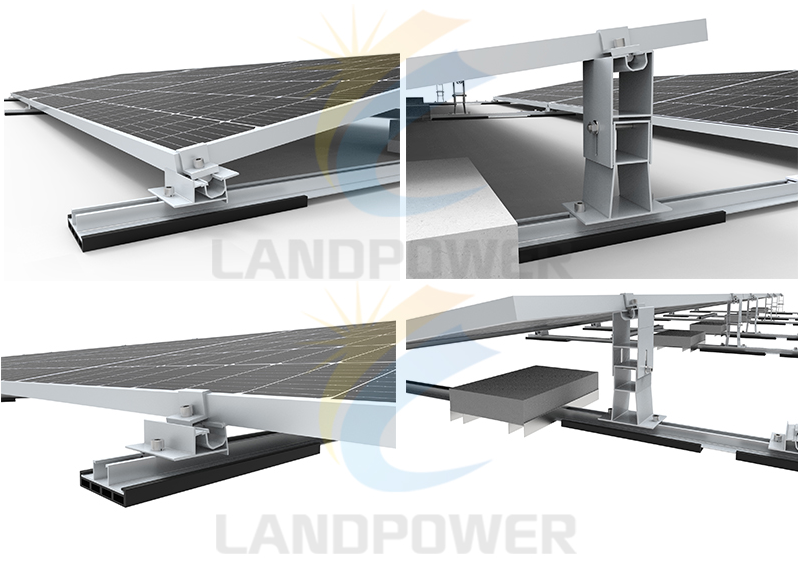

Flat roof solar mounting

Flat roof solar mounting systems are specialized structural solutions designed for low-slope rooftops with a gradient of 0° to 5°, widely applied in commercial, industrial and public building photovoltaic projects. Different from sloped roof brackets, flat roof mounting structures focus on roof waterproofing protection, wind resistance stability and lightweight structural design, becoming the mainstream choice for large-scale rooftop solar power stations worldwide.

TECHNICAL INFORMATION

Install Site: Flat Roof or Metal Roof

Tilt Angle: 10 degrees

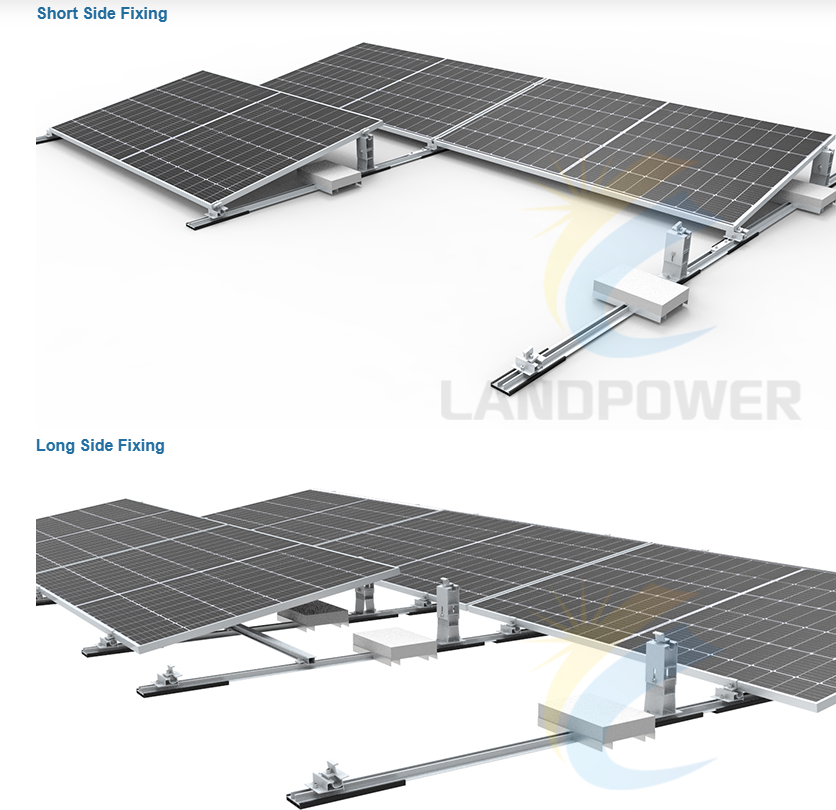

Panel Orientation: South facing or East West

Building Height: Up to 20m

Max Wind Speed: <60m/s

Snow Load:<1.4KN/m2

Standard: AS/NZS 1170, EN 1090

Material: High Class Aluminum alloy Al 6005 T5 and Stainless Steel 304

Color: Natural and Customized

Warranty: 12 years and 25 years lifespan

If you are interested in our products,feel free to contact us.

Contact Email:sales9@landpowersolar.com
